1. Specifications:
Power Cable:Cu(Al)/XLPE/SWA/STA/PVC
-standard:GB,IEC,AS
-Approval:CQC,ABS,GL ,QMS
-10ys experience
2. General information
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is
a risk of mechanical damage, armoured cables should be used.

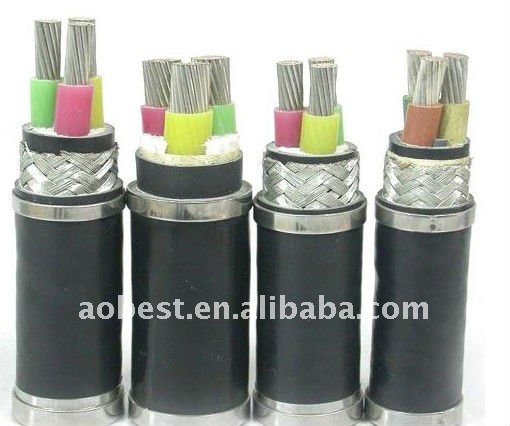

Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
3. Some common use model
| China Model | Name | Uses | Cores | Conductor nominal cross section mm2 |
| YJV
| Copper core XLPE insulated PVC sheathed power cable | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY | 1 | 1.5~800
2.5~800
10~800 |
| YJY
YJLY | Copper core XLPE insulated PVC sheathed power cable | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY | 2 | 1.5~800
2.5~800
10~800 |
| YJV22
YJLV22 | Copper core XLPE insulated Galvanized steel Tape armoured PVC sheathed power cable | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY . | 3 | 1.5~400
2.5~400
2.5~400
10~400 |
|
YJV23
YJLV23 | Copper core XLPE insulated Galvanized steel Tape armoured PE sheathed | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY | 4 | 1.5~400
2.5~400
2.5~400
10~400 |
| YJV32
YJLV32 | Copper core XLPE insulated Galvanized steel wire armoured PVC sheathed power cable | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY | 3+1 | 1.5~400
4.0~400
4.0~400
10~400 |
| YJV33
YJLV33 | Copper core XLPE insulated Galvanized steel wire armoured PE sheathed power cable | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY | 4+1 | + 1.5~400
4.0~400
4.0~400
10~400 |
Note: ZR means flame retardent
